Gear Driven Cable Tray Roll Forming Machine 350H Steel Frame 15m / Min Forming Speed

Brand Name : LCD

Model Number : MZ2017101402

Certification : SGS CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 Sets per month

Delivery Time : 55 working days after receiving 30% deposit

Packaging Details : Nude package in 40' container

Condition : New

Type : Cold roll forming machine

Name : Steel cable tray roll forming machine

Cutting : Hydraulic cutting

Thickness : Up to 4mm

Voltage : 380V ( or as your requirements)

Raw material : Steel

Controlling Mode : PLC+Touch Screen

PLC : Panansonic

Speed : 20 meters/minute

Contact Now

Steel cable tray roll forming machine

Main components

Passive/Hydraulic Single/Double Uncoiler----------------1 set

Leveling machine-----------------------------------------------1 set

Infeeding applicator--------------------------------------------1 set

Roll forming machine------------------------------------------1 set

Hydraulic Automatic Cutting----------------------------------1 set

Output Table-----------------------------------------------------1 set

Biref introduction

This machine is used for producing metal cable tray, the cable tray system is used for supporting insulated electrical cables which are used for power distribution, control and communications, in different area, the design of the cable tray is different, so we make different design of the machines.
Normally, we can design whatever you provide. ( here I refered to the drawings of the cable tray)

Main specifications

Name	Discription
Decoiler capacity	5 T
Suitable inner diameter	508mm
Suitable out diameter	1000mm
Machine Size	Depends on the final design
Machine Weight	16 T
Frame Materials	350H steel
Middle plate type	Memorial archway type
Shaft diameter	80mm
Shaft material	40Cr quenched and tempered
Cutting System	Hydraulic Cutting
Main Engine power	4 KW with cycloidal reducer
Groups of roller stations	13 groups
Forming Speed	15m/min
Pressing Thickness	1-3mm
Driving mode	Gear drive
Pressing width	Up to the final design
Hydraulic motor	3KW
Servo feeding power	3.8KW
Transducer	SIEMENS
Main motor Power	22 kw

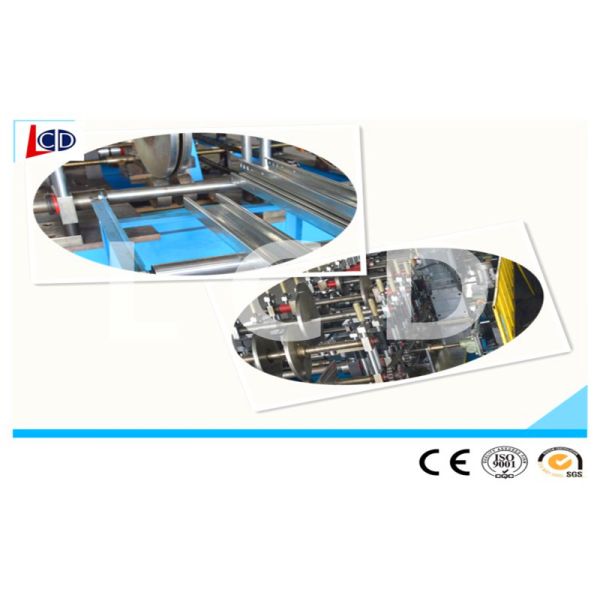

Machine pictures

Gear Driven Cable Tray Roll Forming Machine 350H Steel Frame 15m / Min Forming Speed

Gear Driven Cable Tray Roll Forming Machine 350H Steel Frame 15m / Min Forming Speed
