50HZ Color Steel Roof Panel Forming Machine High Strength With Guide Pillar

Name: 50HZ Color Steel Roof Panel Forming Machine High Strength With Guide Pillar
Brand: Lvchangda
Price: 1 USD

Brand Name : Lvchangda

Model Number : MZ2018082803

Certification : CE

Place of Origin : Jiangsu, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 sets/month

Delivery Time : 35 days after receiving 30% deposit

Packaging Details : Nude Package in 40' container

Condition : New

Type : Roll forming machine

Voltage : 380V/50HZ/3Phase

Warranty : 2 Years

Power(W) : 11kw

Function : Roofing use

Name : Roof roll forming machine

Color : Optional

Speed : 12 meters/min

Contact Now

Fully automatic roof panel roll forming machine with guide pillar

Brief introduction

This roof roll forming machine is draven by gear box, and it is guide pillar type, with higher accurancy and more strength, there are many types of standard roof panels, we can make the designing according to your requirements.

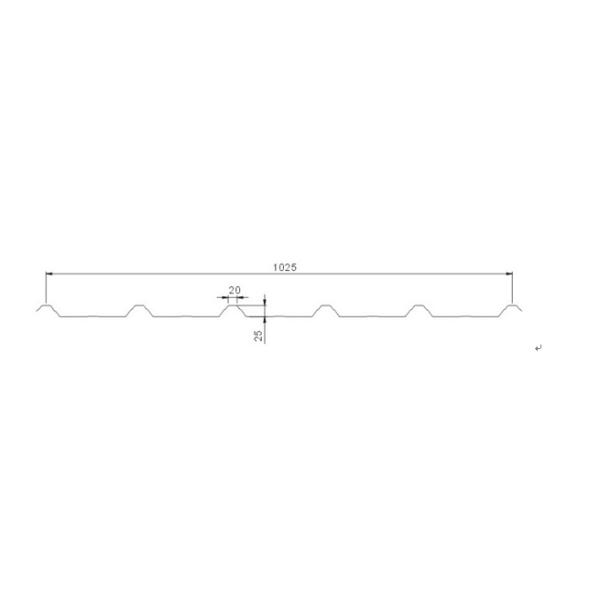

Drawings of the panel( just for reference)

50HZ Color Steel Roof Panel Forming Machine High Strength With Guide Pillar

Main technical parameters

Description
Name	metal roof panel roll forming machine
material	color steel,GI,PPGI
Processing thickness	0.3-0.8mm
Diameter of shaft	Φ80mm
Electric tension	as the customer's requirements
Processing precision	within 1mm
Transmission	by gear box
Hydraulic cutting	controlled by PLC
PLC	Panansonic
Material of blades	Cr12 quenched
Working Space	About 17.92.8m(LW) , as per the drawing
Roller station	According to the final drawing

Machine pictures

50HZ Color Steel Roof Panel Forming Machine High Strength With Guide Pillar
